BARIKIT cylinder kit, Minarelli vertical 75cc AC cast cylinder

Cast iron cylinder kit 75cc for Minarelli vertical – Robust, reliable and suitable for everyday use

The BARIKIT cylinder kit with 75cc displacement and 47mm bore was specially developed for vertical Minarelli engines. The durable cast iron cylinder impresses with powerful and reliable performance, ideal for daily use.

Advantages of the BARIKIT 75cc cast iron cylinder:

As a cost-effective alternative to the aluminum cylinder, this gray cast iron cylinder offers excellent torque and increased top speed. The proven transfer port layout with six transfer ports and a wide exhaust port was adopted from the aluminum cylinder and adapted to meet the thermal requirements of the gray cast iron material.

The scope of delivery includes a high-quality two-ring piston and a matching aluminum cylinder head. Maintenance and adjustment are easy to perform. Spare parts are, of course, always available.

Performance profile at a glance:

• More power in the lower speed range

• Powerful range at around 10,000 rpm

• 8–11 hp, which means 1–3 hp more power than comparable cylinders

For full performance, the cylinder should be combined with coordinated components.

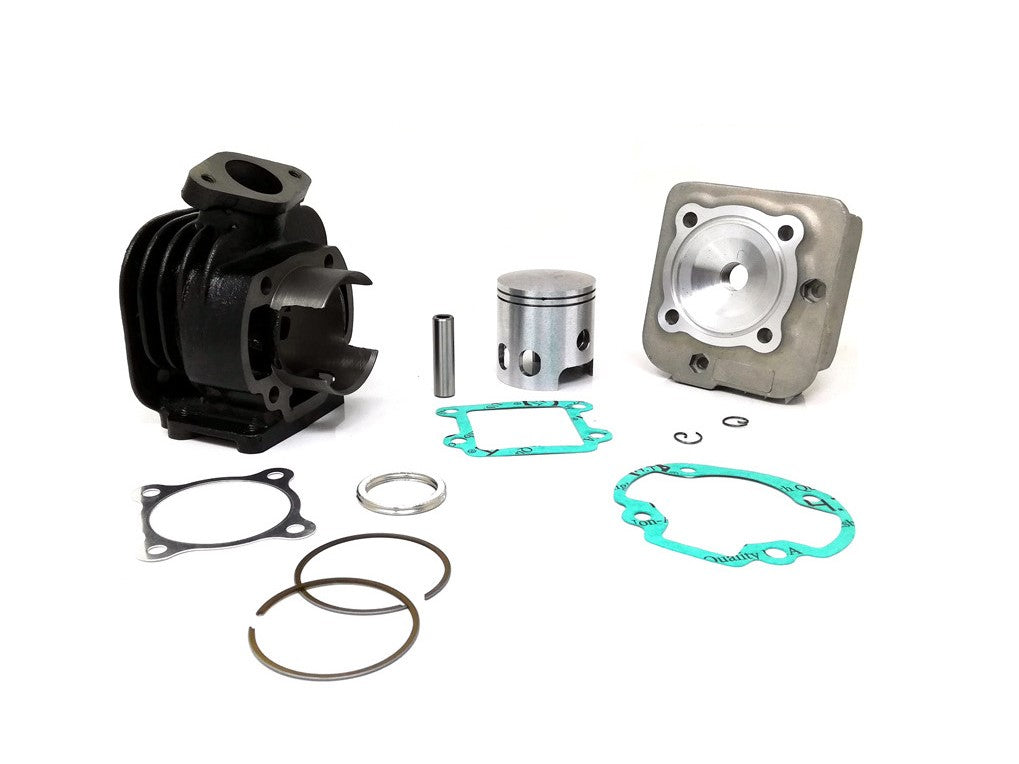

Scope of delivery and technical details:

• Cast iron cylinder, bore 47 mm

• 2-ring piston with 10 mm piston pin, plug & play

• aluminum cylinder head

• Sealing kit

Visually, the cylinder is designed discreetly and close to the series, without a cast-in brand name for a clean look.

Piston article number: P-214
Seals article number: JUN-703
Cylinder head article number: CUL-703

Suitable for:

APRILIA: Amico, Business, Gludman, LK, LX, Sport, SR
ITALJET: Ascot, Astra, Bazooka, Pista, Reporter
MBK: Booster, Rocket, Sorriso, Stunt, Target
MINARELLI: CW 50
YAMAHA: BW'S, CT50, CR50Z, Zuma, Spy50, Slinder
