BARIKIT cylinder kit, Piaggio NRG new model, 80cc LC cast cylinder
BARIKIT 78cc cast iron cylinder kit for Piaggio LC – powerful, reliable
This BARIKIT big-bore cylinder kit with a 50 mm bore and 78 cc displacement was specifically developed for water-cooled Piaggio engines. The robust cast iron construction guarantees high durability, while the larger displacement ensures powerful acceleration and significantly increased top speed.
Why the BARIKIT cast iron 78cc is convincing:
The cylinder delivers noticeable torque even at low engine speeds and maintains constant power up to high engine speeds.
The 6-port transfer port layout with 3-split exhaust is based on the aluminum high-performance cylinder, but has been adapted to the thermal properties of gray cast iron – ideal for water-cooled engines that must operate reliably even under continuous load.
The scope of delivery includes a precision-machined two-ring piston and a matching aluminum cylinder head. Installation is straightforward, and maintenance and spare parts are readily available.
Technical specifications & performance:
-
50 mm bore / 78cc displacement
-
Powerful torque in the lower and mid-range speed range
-
Power range around approx. 10,000 rpm
-
10–13 hp – significantly more powerful than comparable kits
-
Recommended for maximum performance: tuned exhaust, larger carburetor, optimized variator

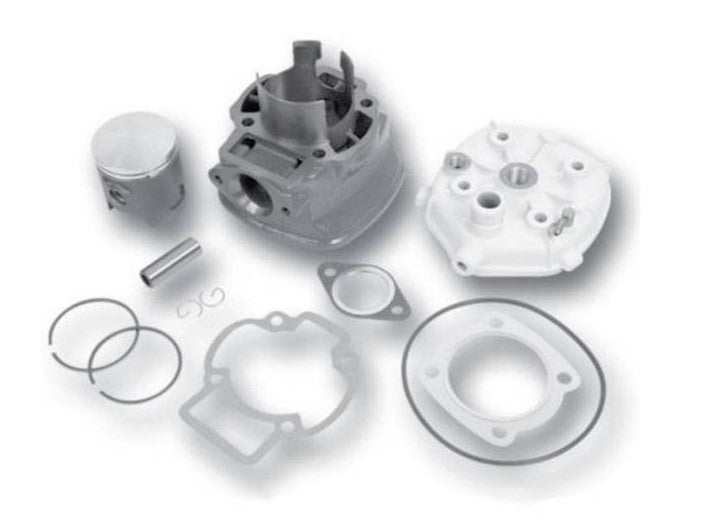

Scope of delivery:
-
50 mm cast iron cylinder (78cc)
-
2-ring piston with 12mm piston pin (plug & play)
-
aluminum cylinder head
-
Complete sealing kit
Visually close to the production model and kept discreet – without any eye-catching logos, so that the cylinder fits perfectly into the original image of the vehicle.
Piston article number: P-617
Item number seals: JUN-783
Suitable for:
DERBI: GP1 Open, GP1 Racing (Piaggio Motor)
PIAGGIO: Quartz, NRG, Zip (new model)
