BARIKIT cast cylinder kit for Piaggio NRG AC 75cc

Cast iron cylinder kit 75cc for Piaggio AC – Robust, reliable and suitable for everyday use

The high-quality BARIKIT cylinder kit with 75cc displacement and 47mm bore was specially developed for Piaggio AC models with Minarelli horizontal engines. The robust cast iron cylinder impresses with its durability and offers an ideal combination of performance and everyday usability.

Advantages of the BARIKIT 75cc cast iron cylinder:

As a more affordable alternative to the popular aluminum cylinder, this cast iron cylinder delivers impressive performance. It boasts ample torque at low revs and an increased top speed – perfect for maximum driving pleasure in everyday use.

The optimized transfer port design with six transfer ports and a wide exhaust port was adopted from the aluminum counterpart and specially adapted to optimally handle the higher thermal requirements of the gray cast iron material. Included in delivery are a high-quality 2-ring piston and a matching aluminum cylinder head, allowing for easy maintenance and uncomplicated adjustments. Of course, we also offer all common spare parts.

Service overview:

• More power in the lower rev range

• Powerful range at approx. 10,000 rpm

• 8–11 hp, which is 1–3 hp more than comparable cylinders

Please note: The cylinder only achieves its full performance in combination with coordinated components.

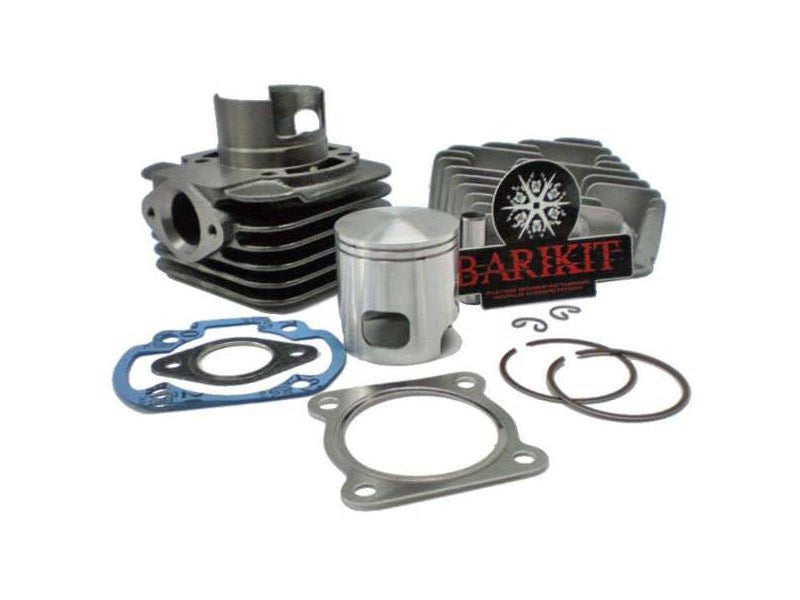

Scope of delivery and technical data:

• Cast iron cylinder, bore 47 mm

• 2-ring piston with 12 mm piston pin, plug & play

• aluminum cylinder head

• Sealing kit

The design is unobtrusive and close to the series – deliberately without a molded brand name for a clean look.

Piston article number: P-227
Item number seals: JUN-700

Suitable for:

DERBI: Atlantis 2T, Boulevard 50 2T (Piaggio engine)
GILERA: Easy Moving, Stalker 50, Storn, Typhoon
PIAGGIO: Free 50, Liberty, NRG, Typhoon, Vespa ET2, Zip
