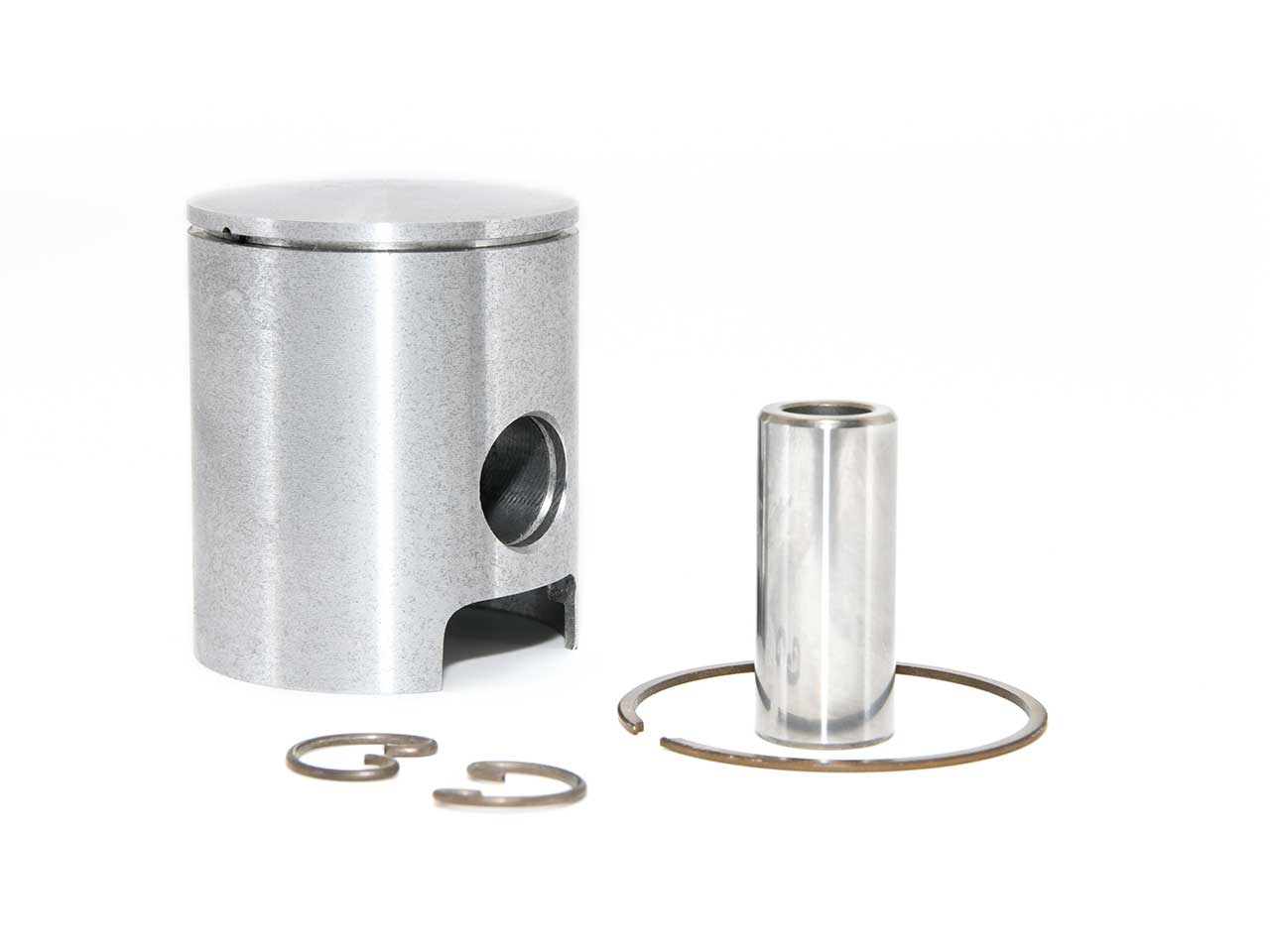

Piston BARIKIT 50cc, Sachs 50SW / Hercules, aluminum cylinder 1-ring 1mm 14 gudgeon pin
extended delivery time, 3-4 weeks
BARIKIT pistons for your Sachs 50SW engine. BARIKIT pistons have been developed for the most extreme applications. The piston is equipped with a 1mm chrome-plated steel ring. The diameter to be selected refers to the cylinder diameter, the running clearance is included.
Trust the specialists. In our downloads you will find a short installation description.

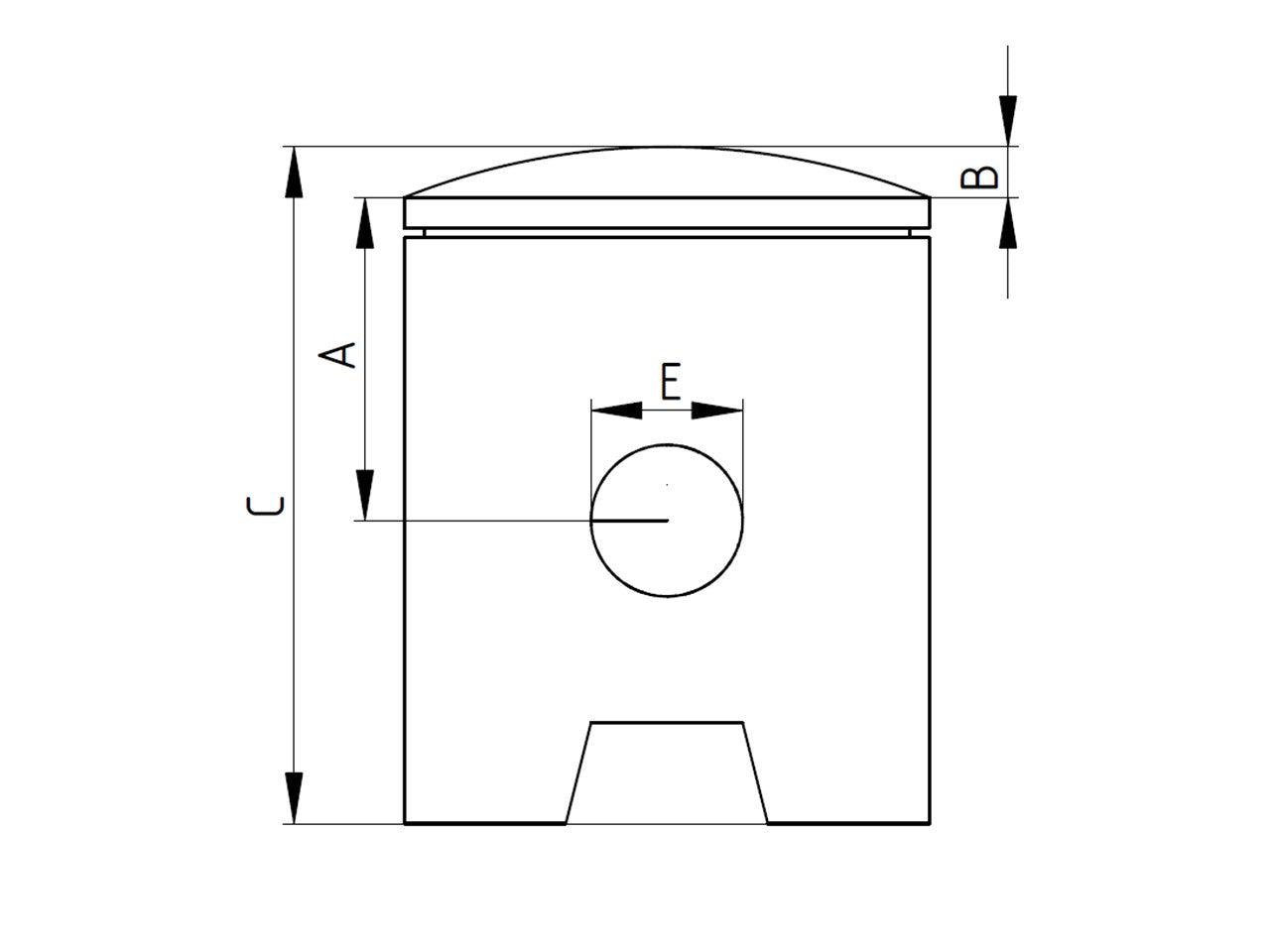

Dimensions
A | B | C | E |
---|---|---|---|
25.5 | 1.8 | 49.5 | 14.0 |
All dimensions in mm.
